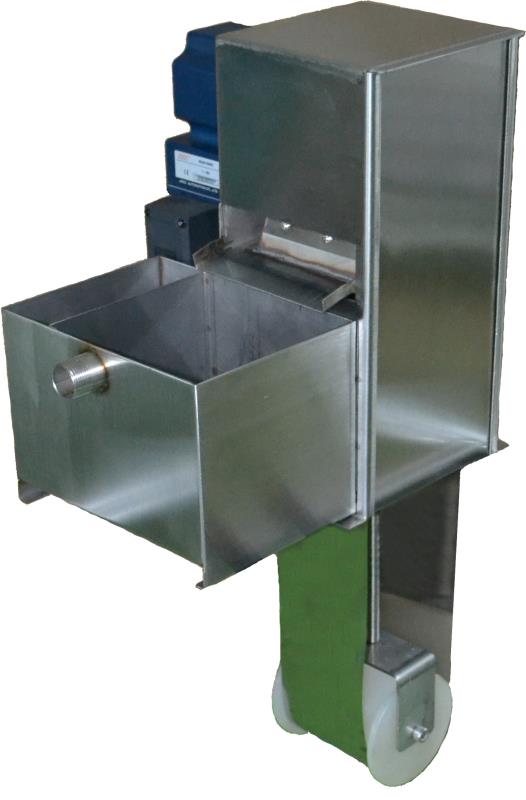

TB-100A型油水分离机

TB-100A型油水分离机

带式油水分离机(刮油机、撇油机、浮油收集机)广泛应用于清洗机、数控机床、CNC加工中心等机床中的水剂、乳化液中漂浮的油污自动分离出来,从而延长了冷却液的寿命,同时也延长了刀具的使用寿命,保证了加工精度。

0.00
0.00


带式油水分离机(刮油机、撇油机、浮油收集机)广泛应用于清洗机、数控机床、CNC加工中心等机床中的水剂、乳化液中漂浮的油污自动分离出来,从而延长了冷却液的寿命,同时也延长了刀具的使用寿命,保证了加工精度。

带式油水分离机(刮油机、撇油机、浮油收集机)广泛应用于清洗机、数控机床、CNC加工中心等机床中的水剂、乳化液中漂浮的油污自动分离出来,从而延长了冷却液的寿命,同时也延长了刀具的使用寿命,保证了加工精度


工作原理:

利用油水之间不同重力和表面张力等特性,当刮油带穿过水面时,吸附并带走表面各种浮油



特点:

1.特制亲油疏水不锈钢带,吸油性强

2.不锈钢机壳,适合清洗机水槽适用

3.使用PP材质驱动轮,消除了铁屑吸附不易清理的问题

3.采用中空轴电机,使电机与箱体分离,避免蒸汽进入电机(特别适合于清洗机)

4.可根据客户提供水池深度定制钢带



规格:

1.电压:220V/380V/三相220V

2.功率:25W

3.刮油量:0-40L/H

4.钢带宽:100mm

5.重量:10KG





TB-100A  OIL  SKIMMER





Belt type oil-water separator is widely used in CNC machine tools, CNC machining centers and other machine tools in the water, oil floating in emulsion automatic separation, thus extending the life of the coolant, but also extend the service life of the tool, to ensure the processing accuracy



Working principle:



Using the characteristics of different gravity and surface tension between oil and water, when the wiper belt passes through the water, it absorbs and takes away all kinds of floating oil on the surface







Features:



1. Special oil-wet and water-repellent stainless steel belt with strong oil absorption



2. Stainless steel case, suitable for washing machine sink

3. PP drive wheel eliminates the problem of iron scrap adsorption drive wheel is not easy to clean



4. Hollow shaft motor is used to separate the motor from the box body to avoid steam entering the motor



5. The steel belt can be customized according to the depth of the pool provided by customers







Specifications:



1. Voltage: 220V/380V/ three-phase 220V



2. Power: 25W



3. Oil scraping amount: 0-40L/H



4. Steel bandwidth :100mm



5. Weight: 10KG
